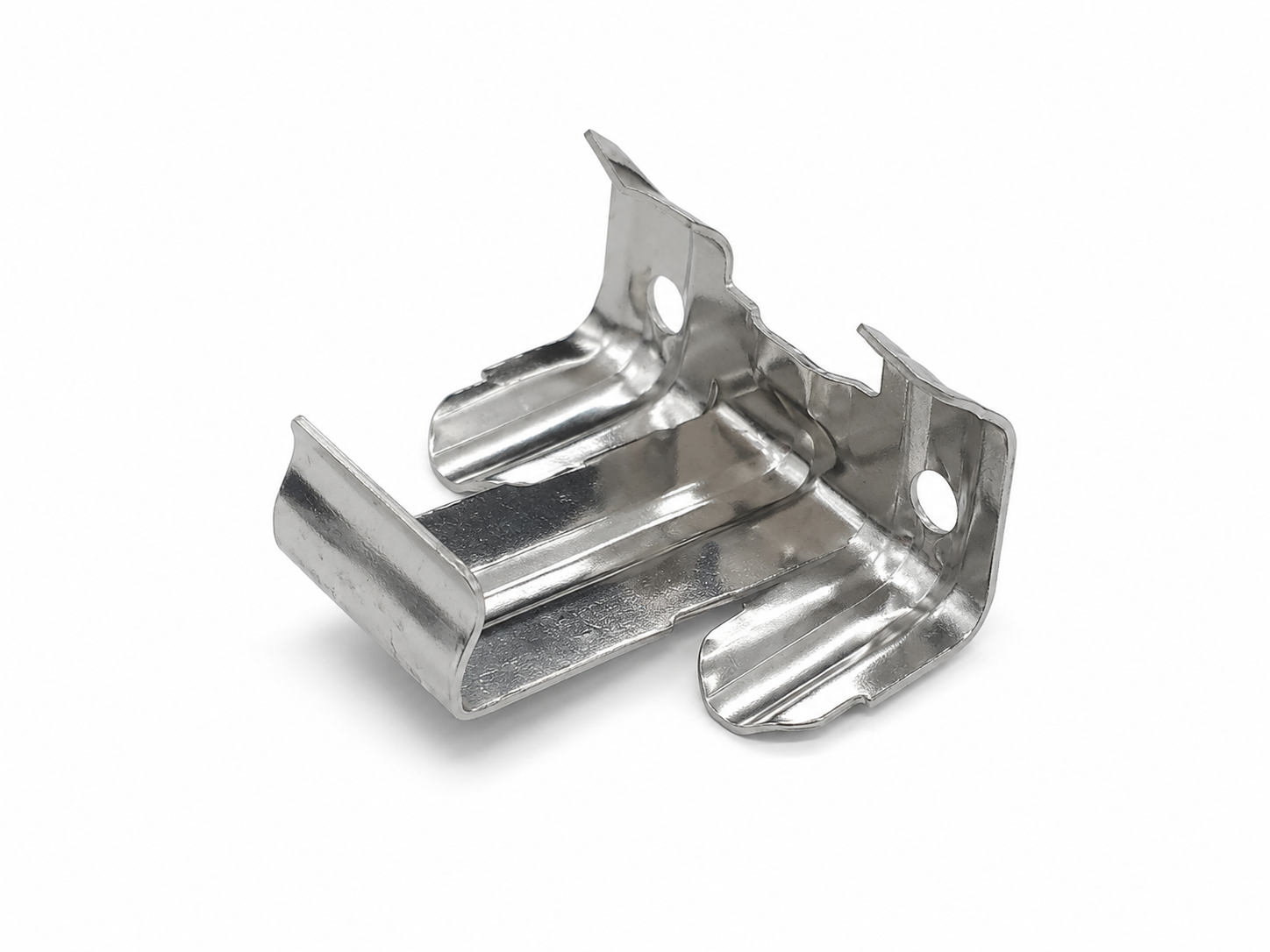

Stamped Slot-Mount Bracket for Solar Panel Installation

Product Information

This stamped slot-mount bracket is designed for positioning and connecting solar panel frames, aluminum rails, and related structural components. Its multi-bend and slot-based configuration supports flexible installation and is suitable for solar mounting applications requiring efficient assembly, structural positioning, or integration with other hardware.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

Stamped Slot Solar Panel Mounting Bracket Description

This mounting bracket features a multi-stage stamped and formed structure that integrates a base support surface, side mounting sections, slots, and local flanges into a single component for positioning and assembly with frames, rails, or other structural parts.

Mounting holes on the side sections can be used with bolts, rivets, or other fasteners. Openings and formed slot features can provide locating, limiting, or interlocking functions according to the geometry of mating components. Reinforcing bends and formed edges can also be adjusted to suit the final assembly design.

Depending on project requirements, the following features can be customized:

Overall length, width, and height
Bend angles and formed geometry
Mounting-hole diameter, quantity, and location
Slot and opening dimensions
Side flanges and positioning features
Material thickness
Mating dimensions
Connection method
Surface finishing

Homer Hardware can evaluate stamping, punching, bending, forming, riveting, welding, deburring, and surface-finishing processes based on customer 2D/3D drawings, samples, or assembly requirements for customized solar panel frame and mounting applications.
