Square Tube Socket Mounting Base for Solar Panels

Product Information

This square tube socket mounting base is designed for installing solar panel support posts, uprights, and related structural components. A square tube can be inserted into the center socket and secured in position, while the base plate attaches to a platform or supporting structure. It is suitable for solar mounting applications requiring removable posts, supports, or equipment structures.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

Square Tube Socket Solar Panel Mounting Base Description

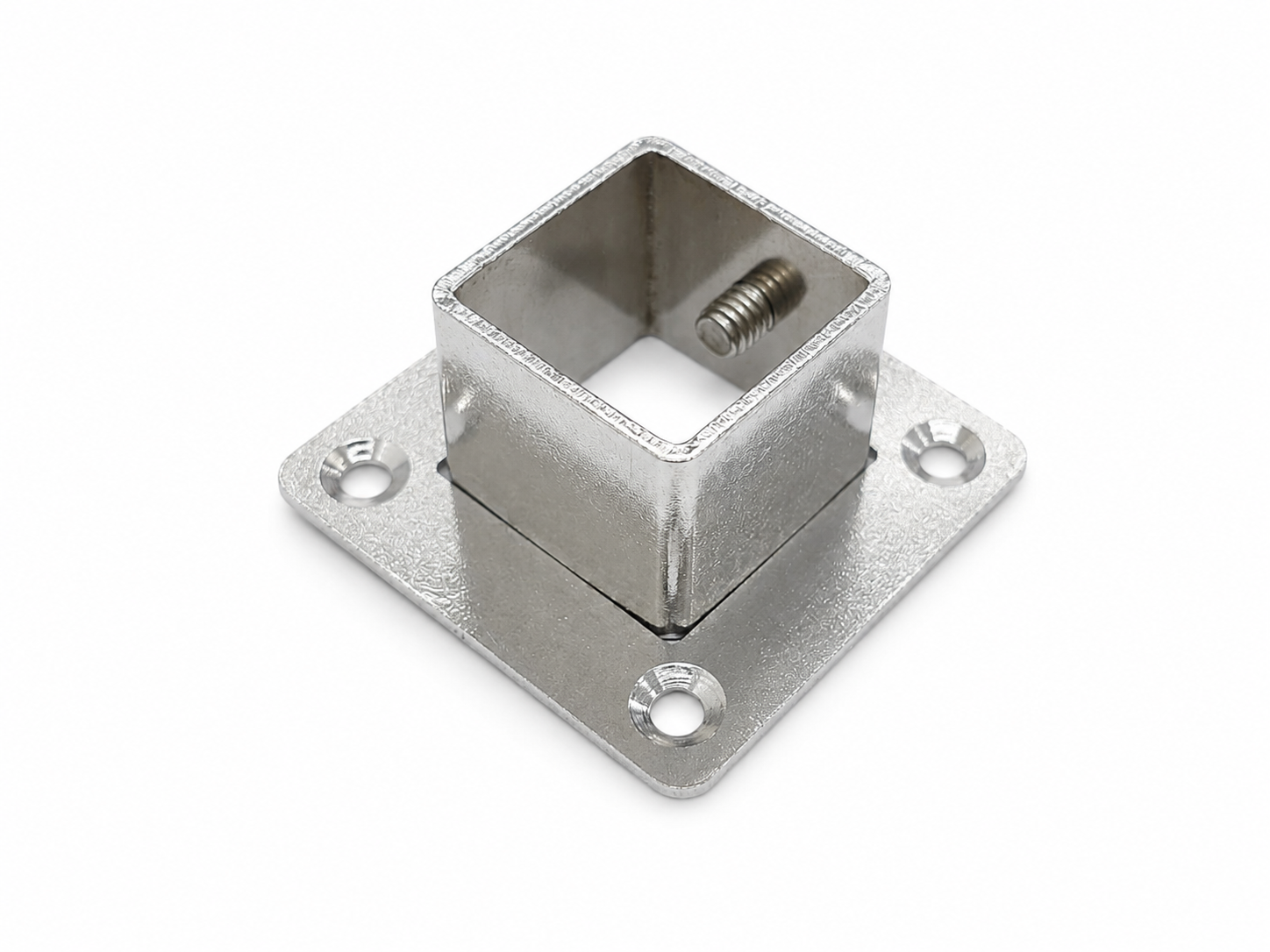

This mounting base consists of a flat mounting plate with a central square socket designed to receive a square tube or upright post. The structure allows a support member to be mounted vertically to a platform, frame, or other supporting base.

Multiple mounting holes are incorporated into the base plate for fastening with bolts or other hardware. The side of the square socket also includes a fastening point that can be used with a set screw to secure the inserted tube, helping restrict movement while allowing the post to be removed or adjusted when required.

This type of component can be used as a connection base for solar panel support frames, equipment posts, structural legs, and other tubular assemblies.

Depending on project requirements, the following features can be customized:

Square socket internal and external dimensions
Socket height
Mating square tube dimensions
Base plate length and width
Mounting-hole diameter, quantity, and location
Side fastening hole and thread specification
Base plate thickness
Socket-to-base connection method
Material and surface finishing

Homer Hardware can evaluate cutting, punching, drilling, bending, welding, threading, CNC machining, and surface-finishing processes based on customer 2D/3D drawings, samples, or mating tube dimensions for customized solar mounting structures.
