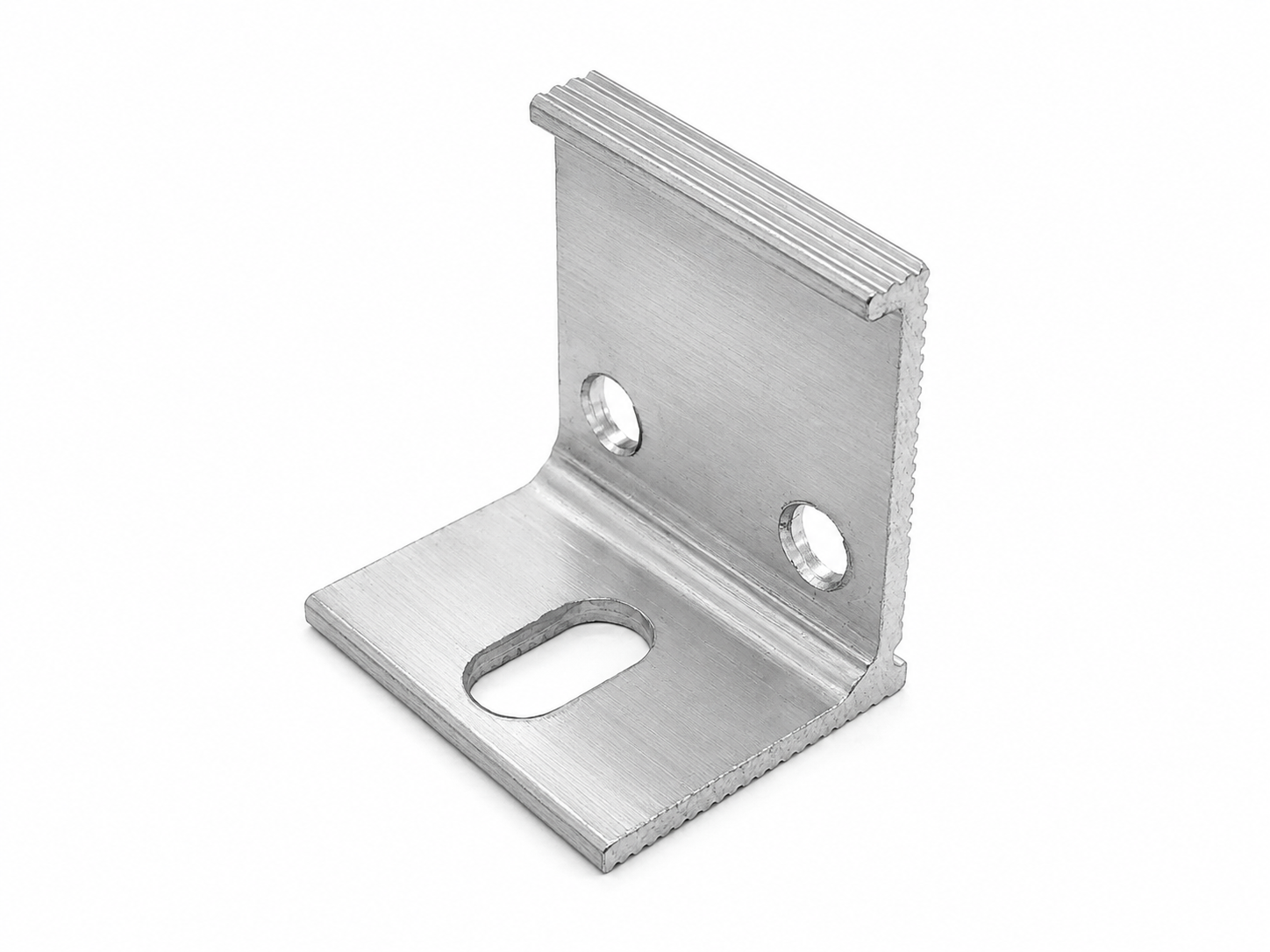

L-Shaped Aluminum Extrusion Bracket for Solar Panel Mounting

Product Information

This L-shaped aluminum extrusion bracket is designed for connecting solar panels, aluminum rails, and related mounting structures. Its right-angle profile provides both horizontal and vertical mounting surfaces, while the combination of round holes and an elongated slot offers flexibility for different fastening positions and assembly requirements.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

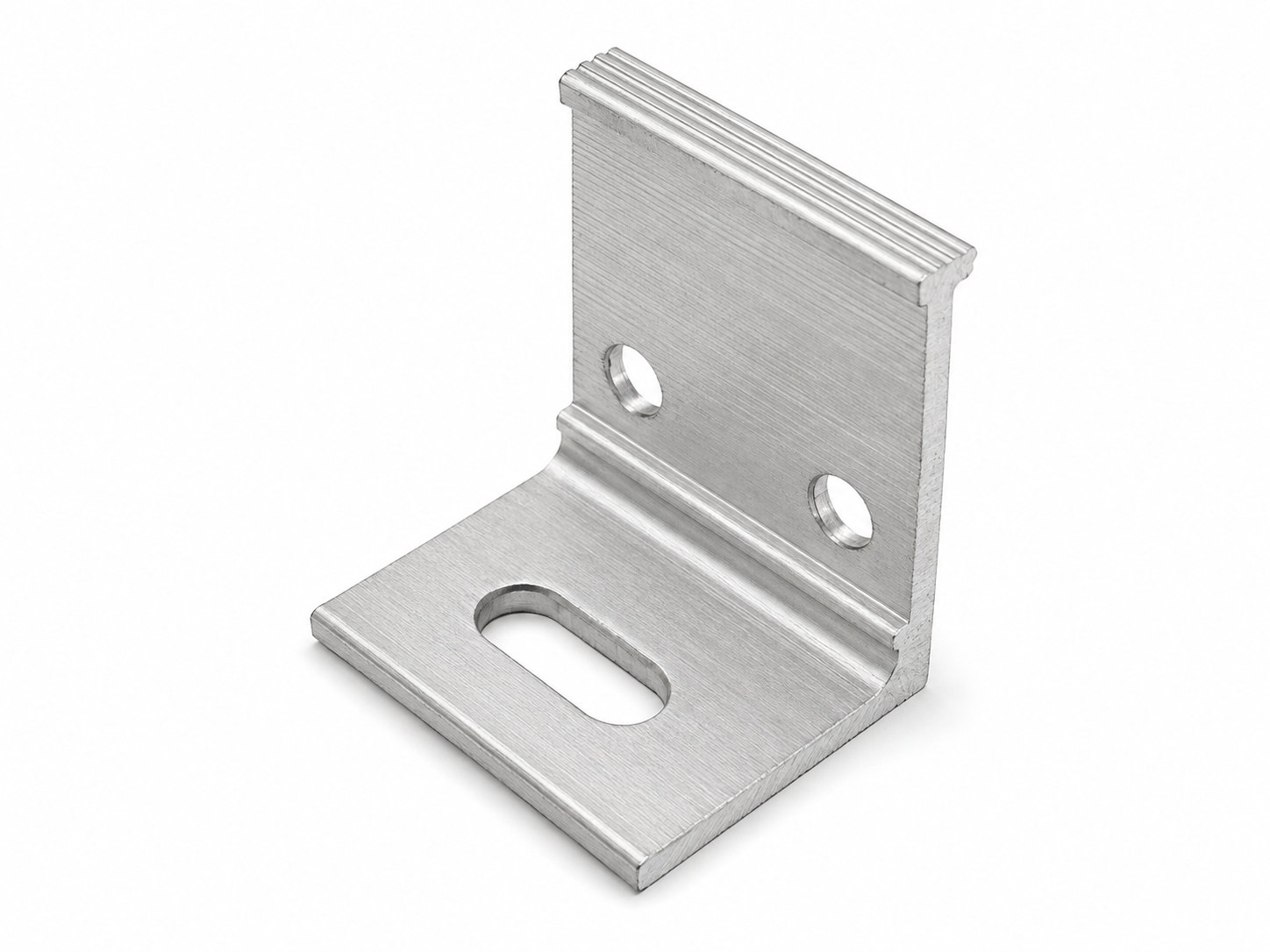

L-Shaped Aluminum Solar Panel Mounting Bracket Description

This bracket features a right-angle L-shaped profile that creates both horizontal and vertical mounting surfaces, allowing two-direction structural connections within a single component.

The horizontal surface incorporates an elongated adjustment slot to provide positioning flexibility during assembly, while the vertical surface includes two round mounting holes for connection with solar panel frames, aluminum rails, mounting bases, or other supporting components using bolts or suitable fasteners.

Selected contact areas of the profile feature a ribbed surface that can be further customized according to the mating component and installation requirements.

Depending on project requirements, the following features can be customized:

Overall bracket length, width, and height
Horizontal and vertical mounting-surface dimensions
Hole diameter, quantity, and spacing
Slot dimensions and location
L-profile proportions
Contact-surface texture and geometry
Material or profile thickness
Assembly interface dimensions
Surface finishing

Homer Hardware can evaluate aluminum extrusion, cut-to-length processing, drilling, CNC machining, deburring, and surface finishing based on customer 2D/3D drawings, samples, or mating rail structures for customized solar mounting applications.
