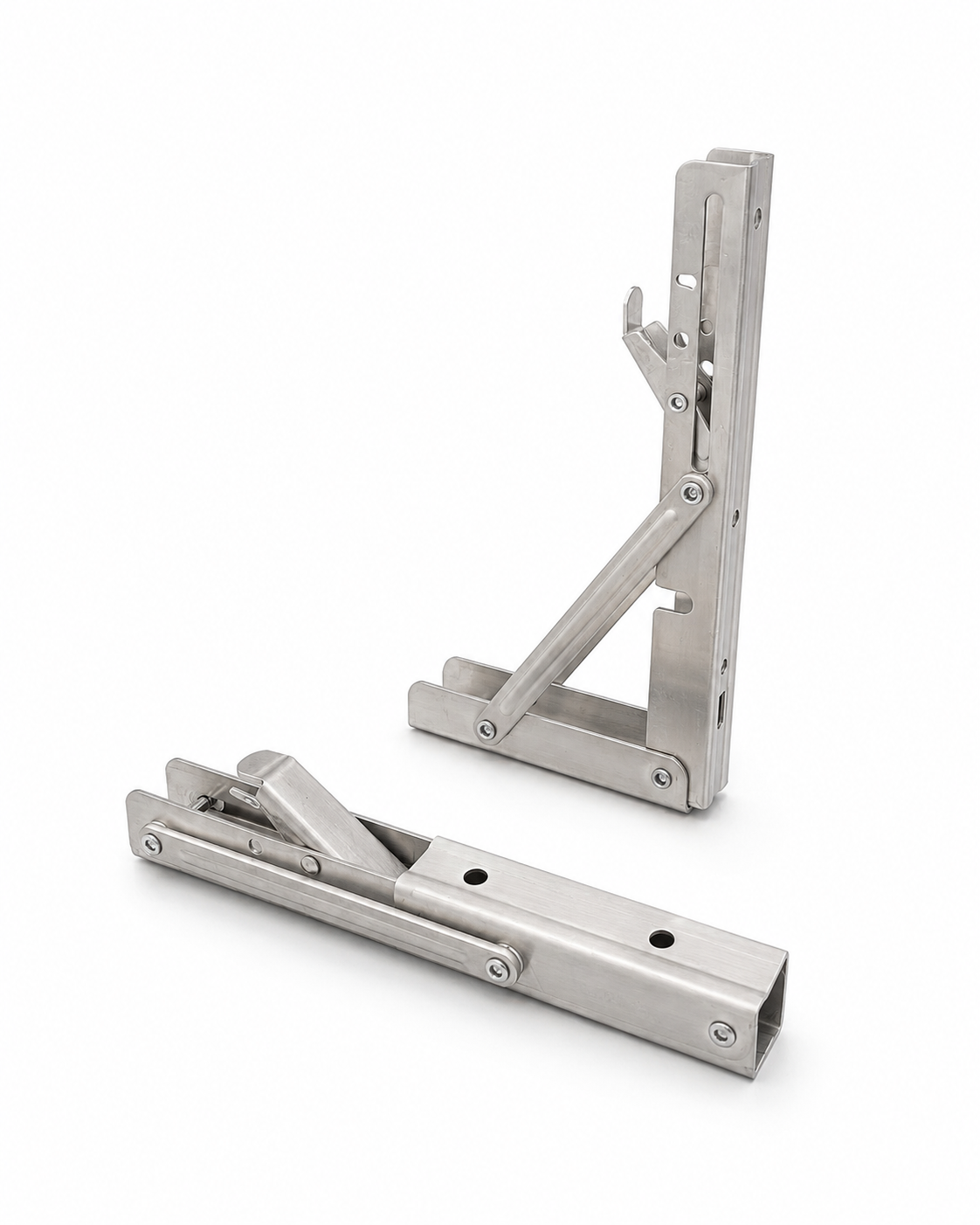

Foldable Solar Panel Support Bracket

Product Information

This foldable support bracket is designed for solar panels and equipment that require both structural support and compact storage. It can be extended to provide a supporting position during use and folded when not required, making it suitable for portable, space-saving, and angle-positioning applications.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

Foldable Solar Panel Support Bracket Description

This bracket uses multiple linkages, pivot points, and folding members to create a collapsible supporting structure. When extended, the linkage system positions the mounting surface at the required support angle. When folded, the components move closer to the main bracket body to reduce the overall profile and storage space.

Mounting holes and elongated adjustment slots are incorporated into the bracket for attachment to solar panel frames, equipment bases, or other supporting structures. The articulated connections allow the bracket to move between extended and folded positions, making it suitable for equipment that requires repeated setup, transportation, or compact storage.

Depending on project requirements, the following features can be customized:

Extended bracket length
Folded dimensions
Support angle
Linkage length and configuration
Pivot and riveting locations
Mounting-hole and slot arrangement
Bracket width and material thickness
Surface finishing
Assembly interface dimensions

Homer Hardware can evaluate stamping, sheet-metal forming, riveting, assembly, and related manufacturing processes based on customer 2D/3D drawings, samples, or equipment installation requirements, with the folding and supporting structure adjusted according to the intended application.
