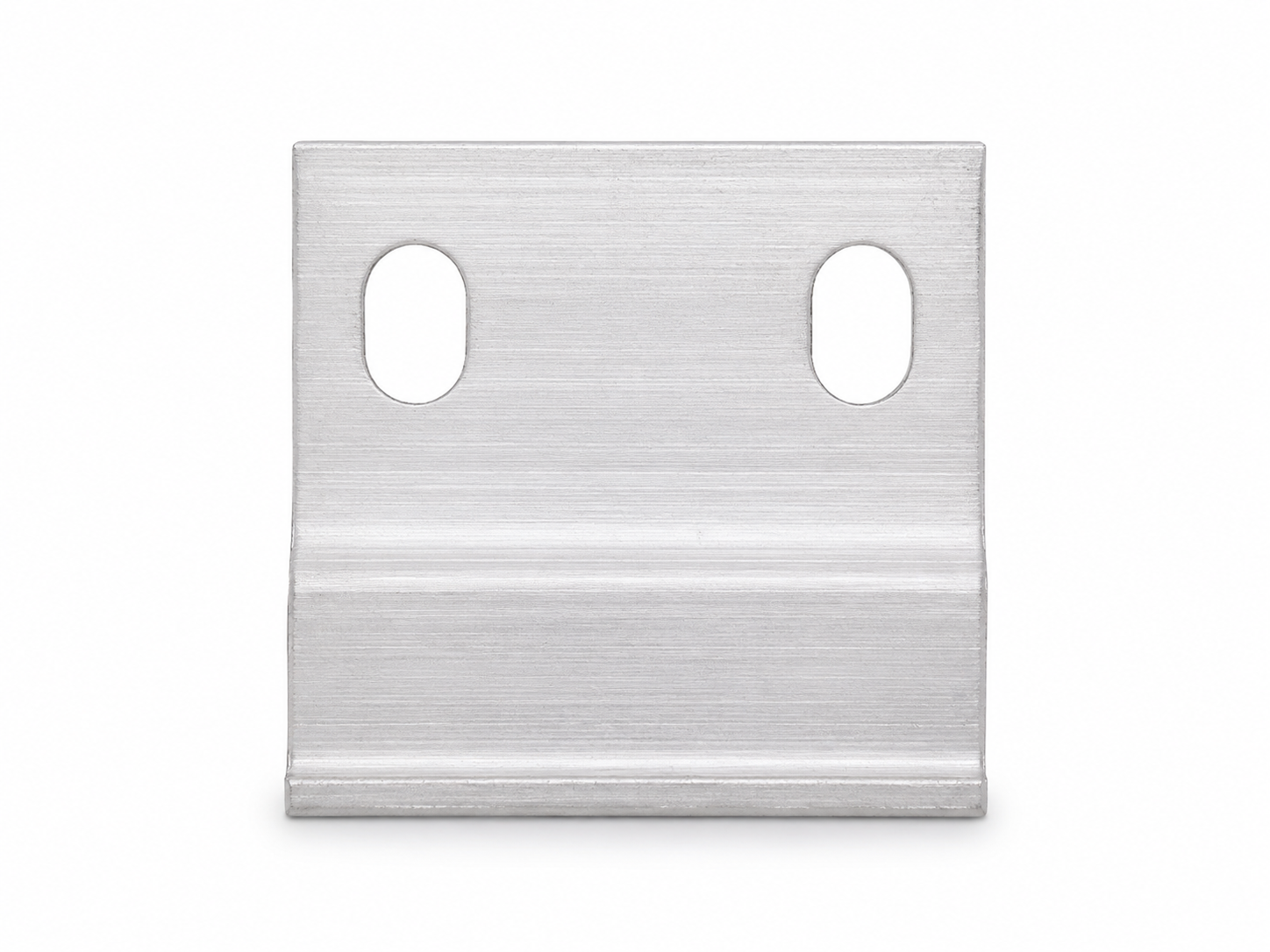

Dual-Slot Aluminum Extrusion Bracket for Solar Panel Mounting

Product Information

This dual-slot aluminum extrusion bracket is designed for securing solar panels, rails, and related mounting structures. Two elongated mounting slots provide flexible fastening positions, making it suitable for solar applications that require adjustment for different hole spacing, installation heights, or structural layouts.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

Dual-Slot Aluminum Solar Panel Mounting Bracket Description

This bracket features a stepped aluminum extrusion profile with mounting surfaces at different heights, allowing it to function as a connecting or adapting component between structural parts with different installation levels.

Two elongated mounting slots are incorporated into the primary mounting surface. Compared with conventional round holes, the slots provide a wider adjustment range during fastening and help accommodate different hole spacing, assembly tolerances, or installation positions.

The stepped profile also creates multiple contact levels within a single component, making the bracket suitable for use with solar panel frames, aluminum rails, mounting bases, and other supporting parts.

Depending on project requirements, the following features can be customized:

Overall bracket length, width, and height
Height offset between mounting surfaces
Slot dimensions, quantity, and location
Aluminum extrusion profile
Mounting-surface dimensions
Interface dimensions for rails or mating components
Cut length
Surface finishing

Homer Hardware can evaluate aluminum extrusion, cut-to-length processing, drilling, CNC machining, deburring, and surface finishing based on customer 2D/3D drawings, samples, or installation requirements for customized solar mounting applications.
