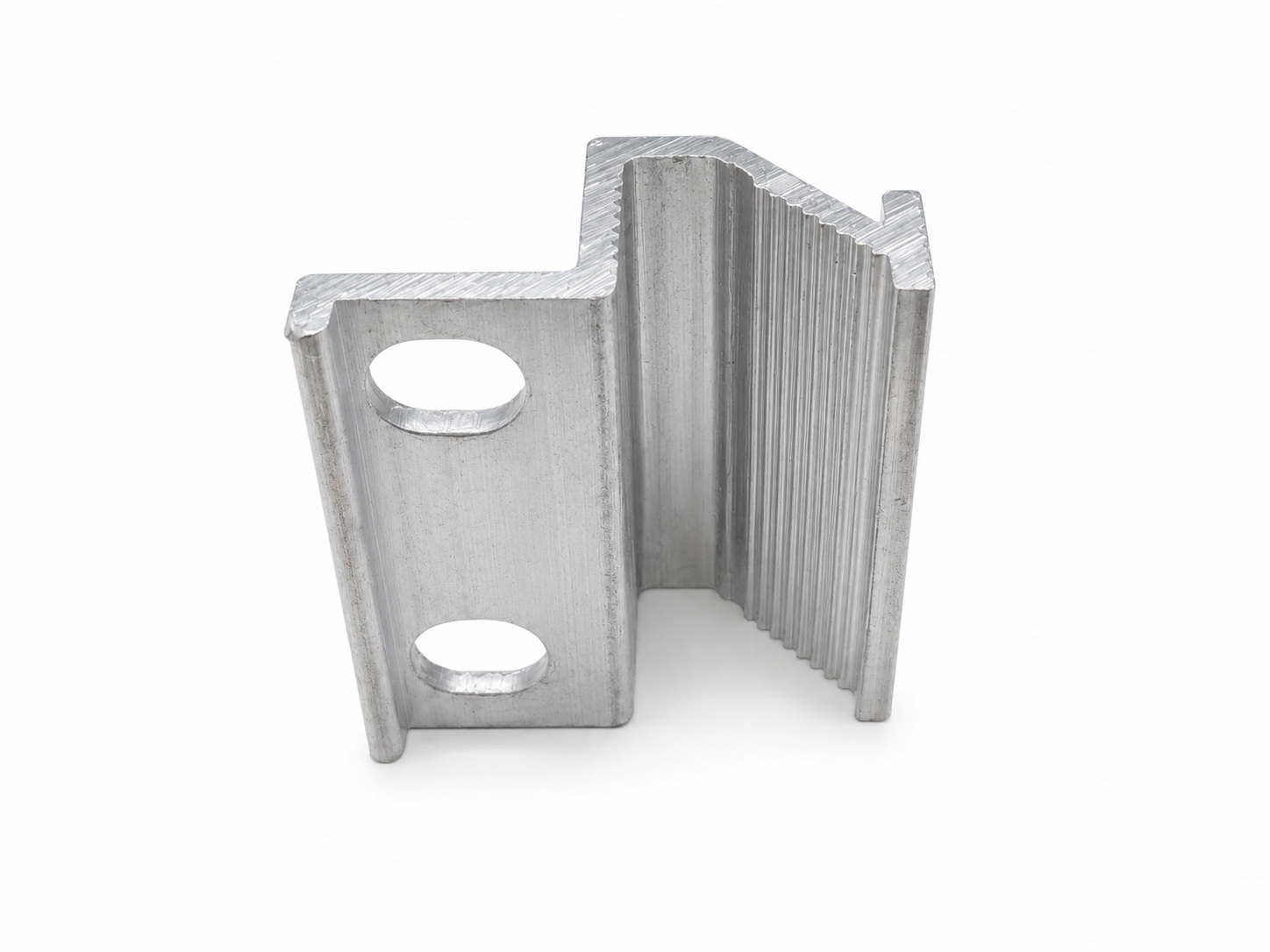

Aluminum Extrusion Connecting Bracket for Solar Panel Mounting

Product Information

This aluminum extrusion connecting bracket is designed for fastening and connecting solar panel rails, brackets, and related mounting structures. Its specialized profile and side slotted holes provide fastening and positioning flexibility, and the design can be customized to match different rail profiles, installation orientations, and interface dimensions.

Available Model Colors

Available Match Colors

Inquiry

Available Model

Available Match

Aluminum Extrusion Solar Panel Connecting Bracket Description

This mounting component features a custom aluminum extrusion profile incorporating a side mounting surface, stepped structural sections, and textured contact surfaces. These features allow fastening, positioning, and structural interfaces to be integrated into a single component.

Two elongated mounting slots are located on the side surface for bolt fastening while providing additional adjustment during assembly. The formed profile and textured contact area on the opposite side can be designed to interface with matching aluminum rails, frames, or other structural components requiring a defined positioning profile.

Depending on project requirements, the following features can be customized:

Aluminum extrusion profile
Overall length, width, and height
Slot dimensions, quantity, and location
Height offsets between mounting surfaces
Contact-surface texture and geometry
Rail or bracket interface dimensions
Cut length
Surface finishing

Homer Hardware can evaluate aluminum extrusion, cut-to-length processing, drilling, CNC machining, deburring, and surface finishing based on customer 2D/3D drawings, samples, or mating rail profiles for customized solar mounting applications.
