Adjustable Hinge Mounting Bracket for Solar Panels

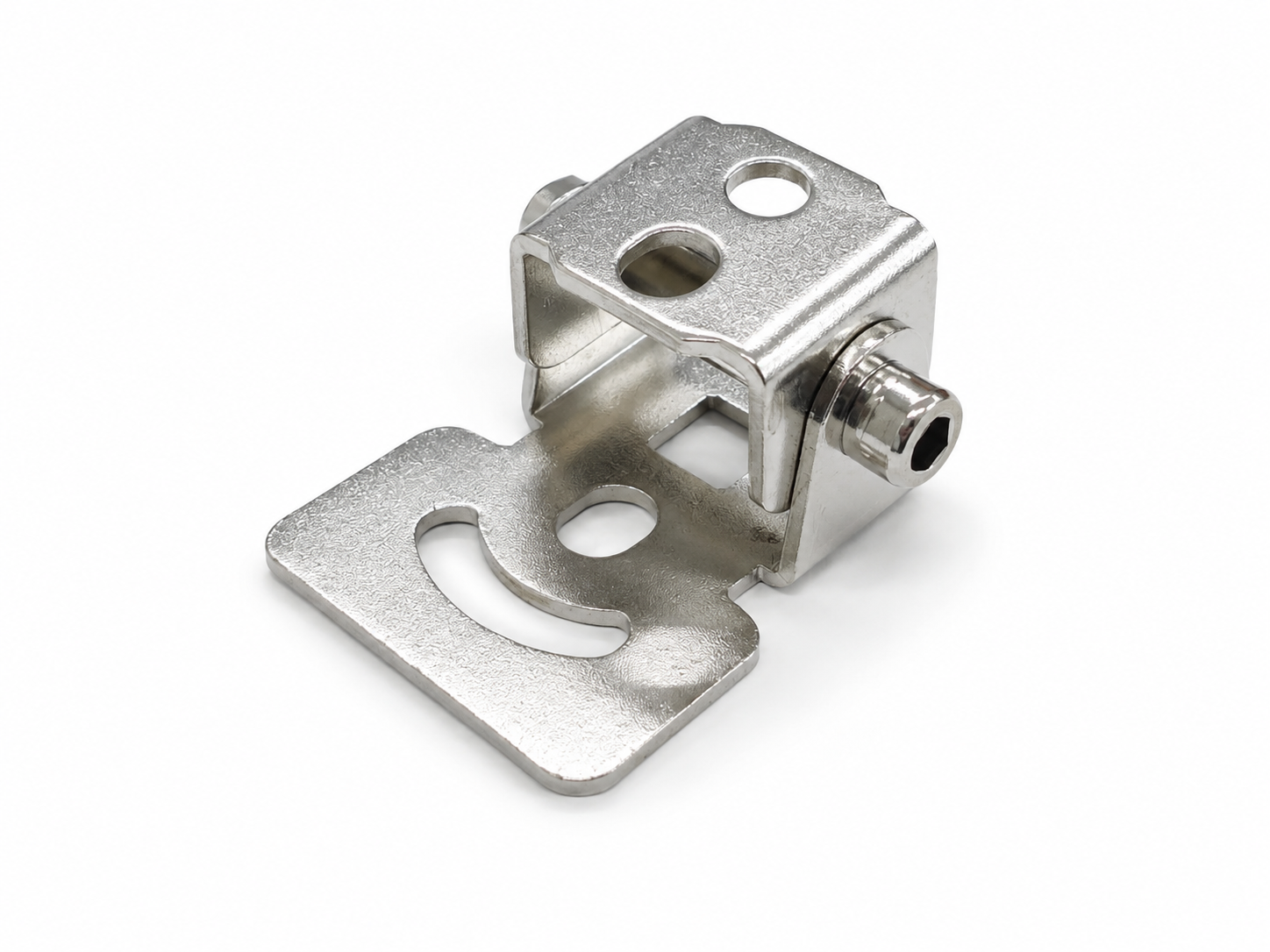

This bracket consists of a base mounting plate, an upper movable mounting section, and a side pivot structure. The design allows relative movement between two mounting surfaces, while the fastening mechanism can secure the assembly at the required position.

The base incorporates both round mounting holes and a curved adjustment slot. The curved slot follows the rotational path of the bracket and provides space for angle adjustment. The upper movable section includes multiple mounting holes for connection with solar panel frames, support members, or other equipment components.

This type of structure is particularly suitable for applications that require tilt or directional adjustment after installation and can also serve as a movable connecting bracket between two structural components.

Depending on project requirements, the following features can be customized:

• Overall bracket dimensions
• Pivot location and structure
• Adjustment range
• Curved slot dimensions and radius
• Mounting-hole diameter, quantity, and location
• Upper and lower mounting-surface dimensions
• Material thickness
• Locking method
• Surface finishing

Homer Hardware can evaluate stamping, punching, bending, riveting, threading, CNC machining, assembly, and surface-finishing processes based on customer 2D/3D drawings, samples, or installation requirements for customized solar panel and equipment mounting applications.
